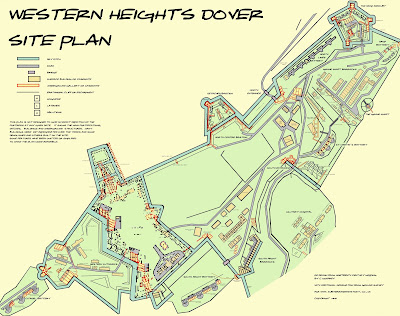

Plan / map of the Western Heights (Citadel pixelated for security)
Please see separate pages for Citadel, Grand Shaft, St. Martin's Battery, Citadel Battery and Drop Redoubt.
Re-enactors at the annual Western Heights Open Day
The North Lines
Caponnier of Detached Bastion
Remains of outer drawbridge, North Entrance
Drawing of demolished Archcliffe Gate, the South Entrance
Drop Battery (8-inch guns c1850, demolished);
North Lines Battery (5x64-pounder RML, 1892, partly demolished);
South Lines Battery (Barbette style, c1880, demolished);
South Front Battery (3x6-inch Breech Loaders, demolished);
St. Martin's Battery (AKA Western Heights Battery, 3 x 10" RML guns, 1870s);
Citadel Battery (3 x 9.2" BL guns, c1901).
North Lines Battery emplacement
Remains of the South Front Barracks
